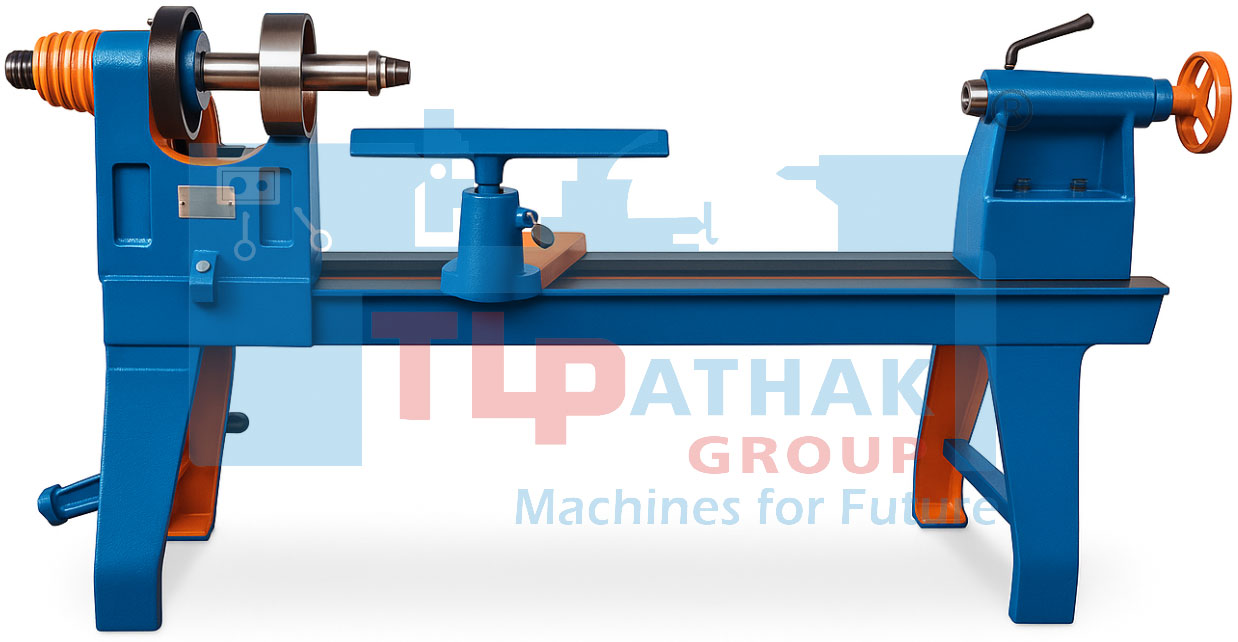

Spinning Lathe Machine
Lathe MachinesA Spinning Lathe Machine is a specialized lathe used in metal spinning or spin forming operations. It is designed to form symmetrical metal components such as lampshades, cones, and other hollow cylindrical or conical shapes by rotating a metal blank at high speed and applying force via a forming tool.
From ₹
115,000
To
125,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Option | Hydraulic Heavy Duty Spinning Rolling Machine with Double Slide |
Manual Heavy Duty Spinning Rolling Machine with Single Slide attachment |
Hydraulic Heavy Duty Spinning Rolling Machine with Double Slide attachment |
Manual Spinning Rolling Machine with Single Slide attachment |
Hydraulic Heavy Duty Spinning Rolling Machine with Double Slide attachment |
Manual Spinning Cutting & Beating Machine with Single Slide attachment |
|---|---|---|---|---|---|---|
| Length of Bed | 1828 mm | 1828mm | 1600mm | 1600mm | 1828mm | 1260mm |
| Height of Centre | 406 | 406mm | 330mm | 330mm | 460 mm | 254 mm |
| Diameter of Spindle | 98mm | 98mm | 76.02mm | 76.02mm | 98mm | 68mm |
| Width of Bed | 305mm | 305mm | 280mm | 280mm | 305mm | 254mm |
We have established our company as an eminent manufacturer, trader, and exporter of well-engineered and manufactured machines. Our spinning lathe machine is user-friendly and has a feature-rich interactive graphical programming system. This machine will help you in spinning, shear forming, and machining.
Typical Components
| Headstock Drives the rotation of the spindle and mandrel. |
| Tailstock Supports the blank and may apply axial pressure. |
| Tool Rest/Slide Holds the spinning tool and controls its movement. |
| Mandrel/Form Pre-shaped die that gives the part its final shape. |
| Spinning Roller Tool Forms the blank over the mandrel. |
Key Features:
| Feature |
Description |
|---|---|
| Operation Type | Manual, Semi-automatic, or CNC |
| Material Formed | Aluminum, Copper, Brass, Stainless Steel, Mild Steel |
| Chuck Type | Faceplate or Mandrel holding |
| Forming Tool | Roller tool used to press the blank onto a mandrel |
| Tailstock | Supports the blank and ensures concentricity |
| Speed Control | Variable speed via gearbox or inverter |
| Bed Length | Varies based on model; determines size of the workpiece |

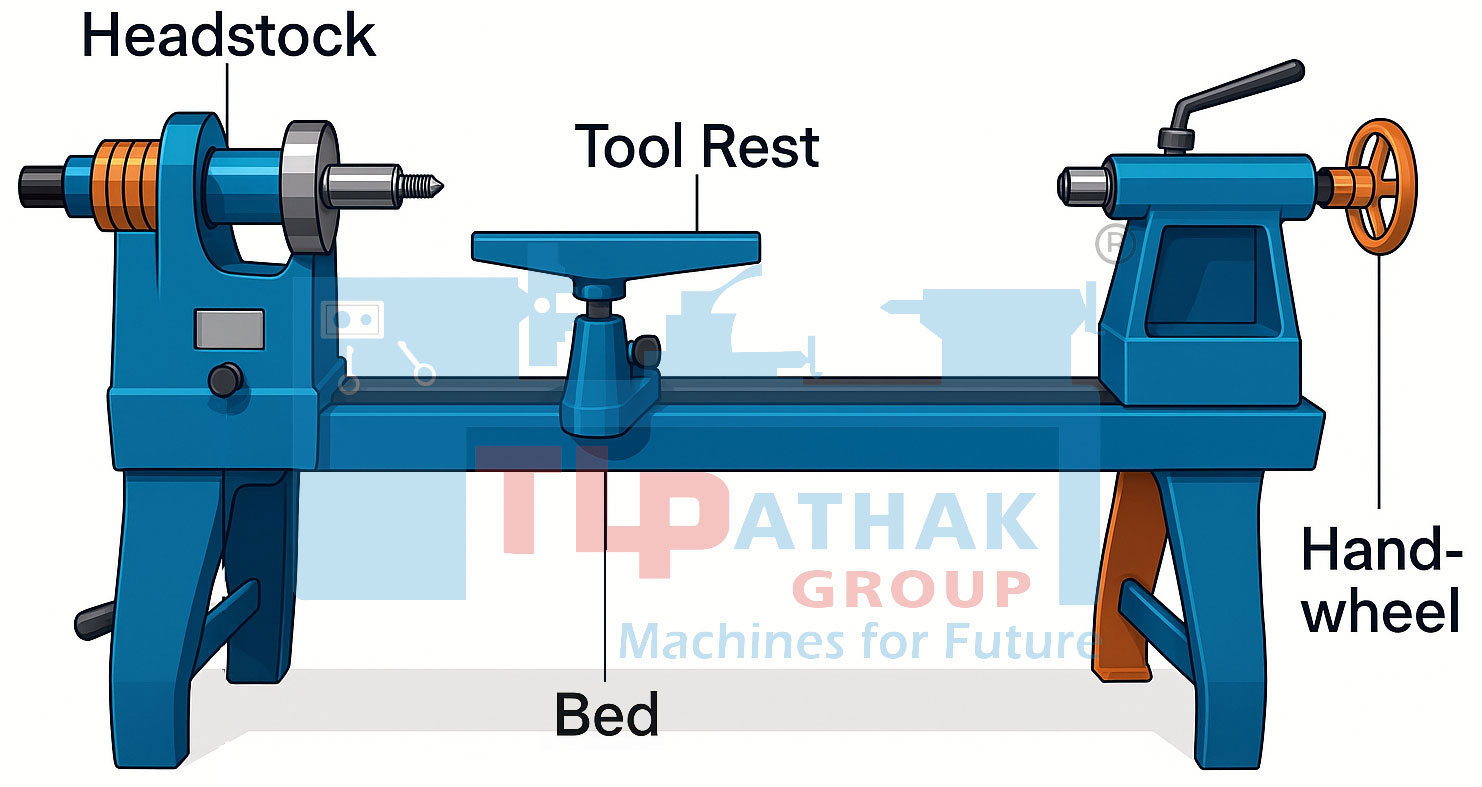

A 3D perspective from the front, showcasing all components labeled for the Spinning Lathe Machine.
Application of Spinning Lathe Machine
| Used in metal spinning to form symmetrical hollow shapes (e.g., cones, cylinders). |
| Ideal for sheet metal forming without cutting. |
| Common in aerospace, automotive, and lighting industries. |
| Used in kitchenware manufacturing (pots, pans, bowls). |
| Applied in musical instrument body fabrication (e.g., brass instruments). |
| Makes reflectors, nozzles, and decorative items. |
| Suitable for prototype and small batch production. |
Uses of Spinning Lathe Machine
| Forming round and conical metal parts. |
| Reducing material thickness while increasing length (necking). |
| Flanging to create outward or inward rims on parts. |
| Trimming excess metal from spun workpieces. |
| Straightening or reshaping distorted cylindrical parts. |
| Creating complex geometries from flat metal disks with precision |
Spinning Lathe Application Img 1
Spinning Lathe Application Img 2
Spinning Lathe Application Img 3
Spinning Lathe Application Img 4
