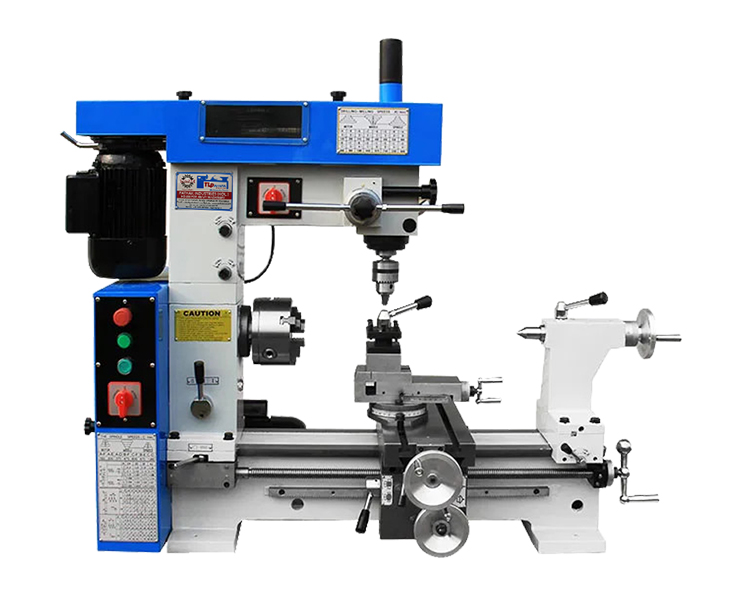

3 in 1 Lathe Cum Milling and Drilling Machine
Lathe MachinesA 3-in-1 Lathe cum Milling and Drilling Machine is a versatile multi-functional machine tool used for turning, milling, and drilling operations, ideal for small workshops, tool rooms, and educational institutions. It combines the functions of:
- Lathe (for turning, facing, threading)
- Drilling (for boring precise holes), and
- Milling (for cutting, shaping, and slotting)
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | TLPLMD 500/800 |
| Swing over bed | 420mm(16-5/9") |
| Distance Between Centers | 500mm/800mm(20"/31-1/2") |
| Max. Longitudinal Travel | 440mm/740mm(17-1/3"/29-1/8") |
| Max, Cross Travel | 200mm(7-7/8") |
| Taper of Spindle | MT4 |
| Spindle Hole | 28mm(1-1/9") |
| Step of spindle speed | 7 steps |
| Range of Spindle Speed | 160-1360 RPM |
| Barrel Travel | 70mm(2-3/4") |
| Taper of center | MT3 |
| Metric Thread Range | 0.2-6mm |
| Inch Thread Range | 4-120 ?.?.? |
| Longitudinal Range of Automatic Feeding | 0.05-0.35mm/0.002-0.014" |
| Cross Range of Automatic Feeding | 0.05-0.35mm/0.002-0.014" |
| Max. Drilling Capacity | 22mm(7/8") |
| Worktable Size (LxW) | 475×160mm(18/1-2"×6-2/7) |
| Worktable Size (LxW) | 475×160mm(18/1-2"×6-2/7) |
| Max. End Mill | 28mm(1-1/9") |
| Max. Face Mill | 80mm(3-1/7") |
| Distance Between Spindle Center and Column | 285mm(11-2/9") |
| Distance Between Spindle and Worktable | 306mm(12") |
| Head Stock travel of up and down | 110mm(4-1/3") |
| Spindle taper | MT3 |
| Step of Spindle Speed | 16 steps |
| Range of Spindle Speed | 120-3000 RPM |
| Swivel Degree of Head Stock | +- 360° |
| Motor power | 0.75 kW |
| Packing Size | 1430/1130×580×1100 mm |
| N. Weight/G. Weight | 245kg/280 kg |
| Loading Amount | 40pcs/20 Container |
The 3 in 1 Lathe Cum Milling and Drilling Machine by T.L. Pathak Group is a versatile, all-purpose machine designed for small workshops and tool rooms. It combines lathe, milling, and drilling operations into a single, compact unit, allowing you to perform turning, face milling, slotting, boring, and drilling with ease. Built with a robust structure and powerful motor, it delivers high precision and smooth performance across various materials. Ideal for job shops, education centers, and maintenance departments, this multi-function machine saves space, reduces cost, and increases productivity. T.L. Pathak Group guarantees quality, reliability, and strong after-sales support for all its machines.
Key Features
| Multi-purpose Design: Combines three operations in one compact unit. |
| Space-Saving Reduces floor space requirements. |
| Easy Operation User-friendly controls and interchangeable tooling. |
| Suitable for Light to Medium Workload: Best for non-production settings. |

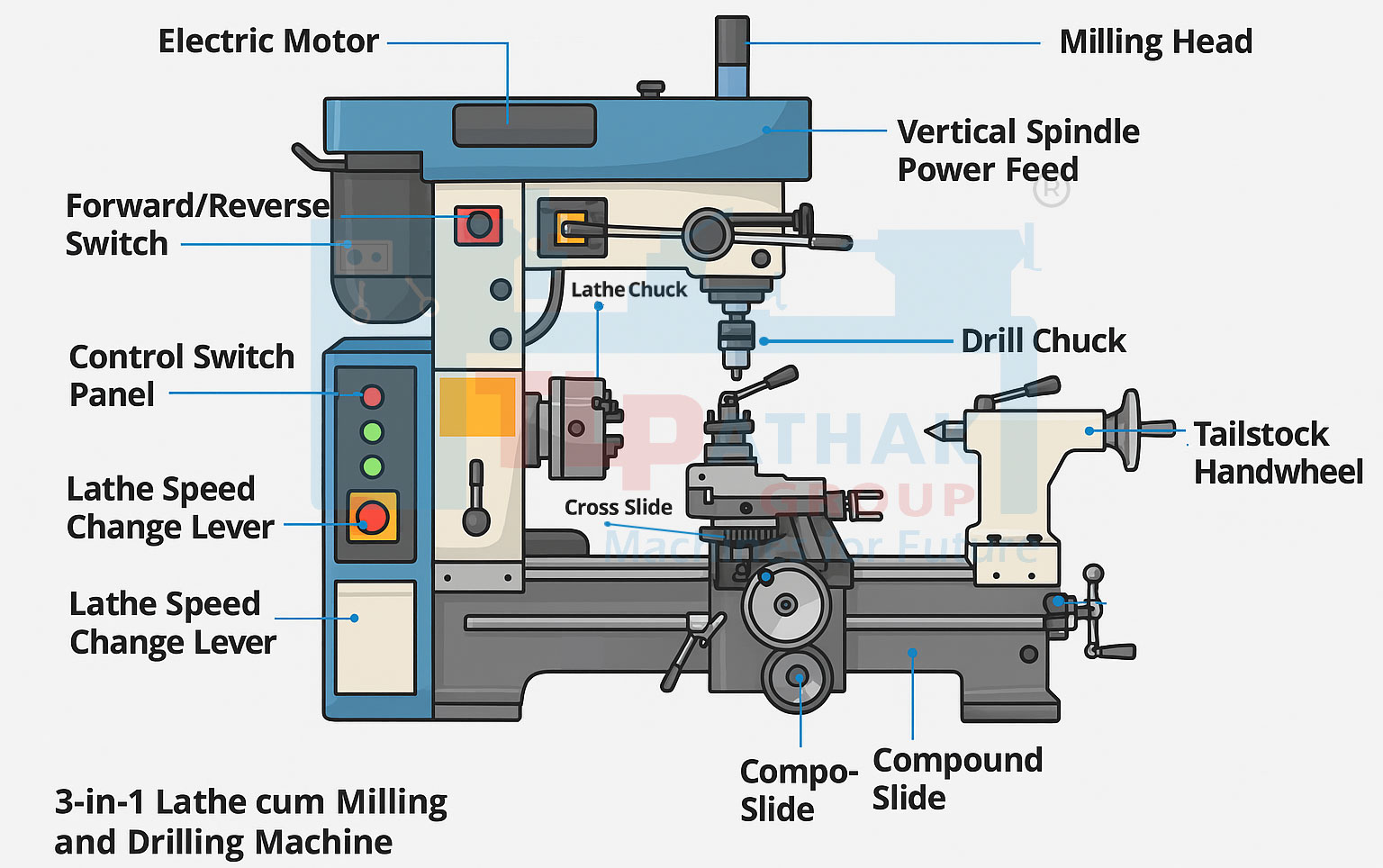

3D angled front view with all parts labeled for 3 in 1 Lathe Cum Milling and Drilling Machine
Key Features For 3-in-1 Lathe, Milling, and Drilling Machine
| Lathe (for turning operations) | Milling (for shaping and slotting) |
| Drilling (vertical drill with adjustable head) | Motor on the left – powers all three operations. |
| Vertical spindle head – for drilling/milling, adjustable in height and axis. | Lathe chuck and tailstock – for turning long cylindrical parts. |
| Cross-slide table – precise manual control for positioning work under the tool. | Control buttons and gear selector – for spindle speed and feed adjustment. |
Tool Rooms
Educational and training institutes
Maintenance workshops
