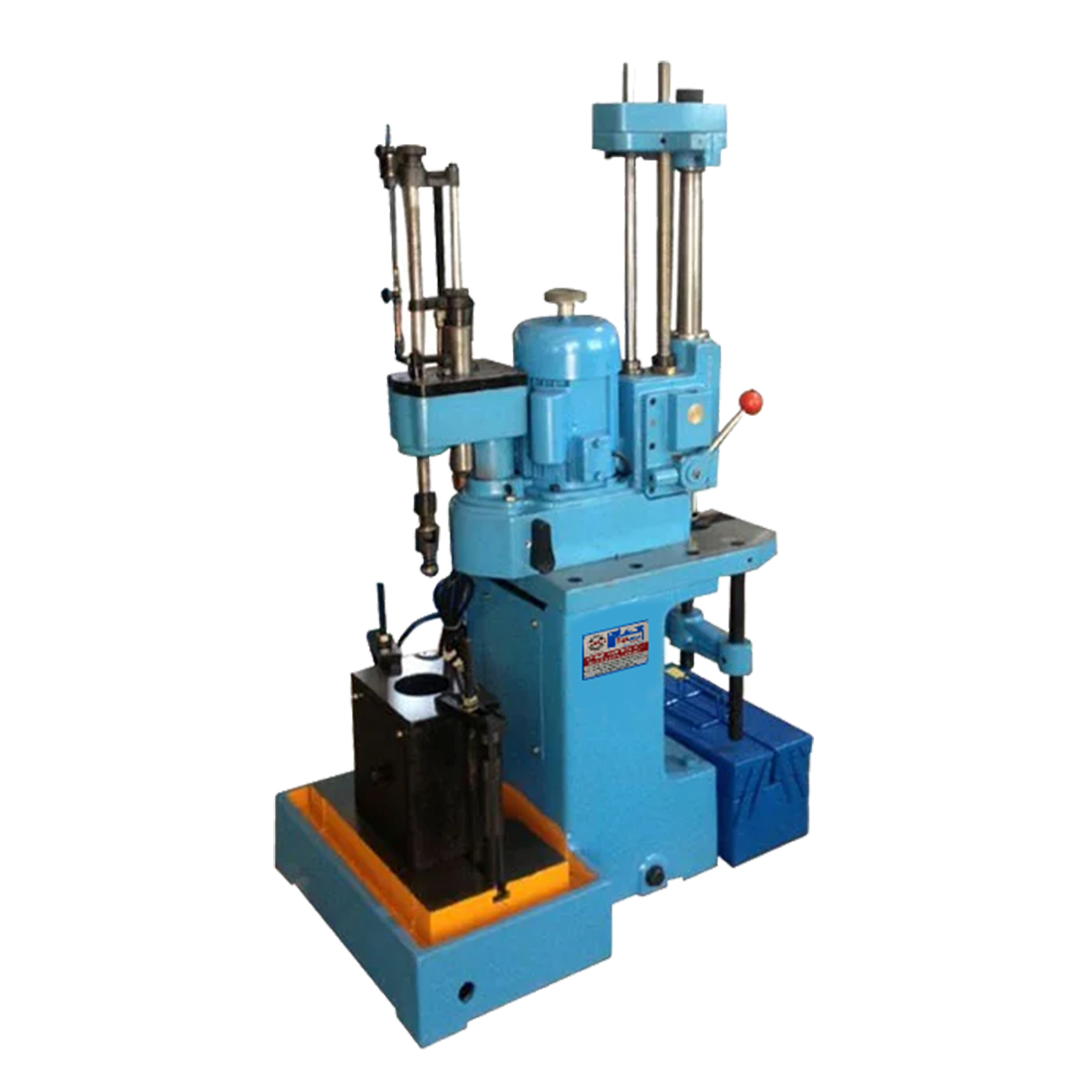

Cylinder Boring Cum Honing Machine
Garage MachinesThe Cylinder Boring Cum Honing Machine by T.L. Pathak Group is a versatile, heavy-duty machine designed for precision boring and honing of engine cylinders. It combines boring and honing operations in a single setup, allowing for higher accuracy, smoother surface finish, and improved cylinder geometry. Ideally used for automotive, diesel, and heavy machinery repairs, this machine is durable, reliable, and operator-friendly, delivering high productivity with minimum effort. Built with a robust structure and precision components, it guarantees efficiency, stability, and long service life, making it a valuable asset for workshops and garages.
From ₹
395,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | PMCBH |
| Diameter of Boring & Honing Hole | 39-72 mm |
| Max. Boring & Honing Depth | 160 mm |
| Rotational Speed of Boring & Spindle | 480 r/min |
| Steps of Variable Speed of Boring Honing Spindle | 1 Step |
| Feed of Boring Spindle | 0.09 mm/r |
| Return and Rise Mode of Boring Spindle | Hand operated |
| Rotational Speed of Honing Spindle | 300 r/min |
| Honing Spindle Feeding Speed | 6.5 m/min |
| Electric Motor Power | 0.75 kw |
| Rotational | 1400 r/min |
| Voltage | 220 or 380 V |
| Frequency | 50 HZ |
| Overall Dimension (LxWxH) | 680x480x1160 mm |
| Packing (LxWxH) | 820x600x1275 mm |
| Weight of Main Machine(Approx) | N.W 230 kg,G.W 280 kg |
