Automatic Circular Saw Cutting Machine
Cutting MachinesThe CNC High-Speed Metal Cutting Circular Saw Machine is a state-of-the-art solution engineered for high-precision, high-volume metal cutting applications. Designed to deliver exceptional performance, this machine efficiently cuts large diameter bars ranging from 20 mm to 80 mm with superior accuracy and repeatability.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | PCS-75S | PCS-90S | PCS-110S | PCS-150S |
| Cutting Capacity in Round | 10-72mm | 15-90mm | 25-110mm | 60-150mm |
| Cutting Capacity in Square | 10-55mm | 15-70mm | 28-85mm | 60-105mm |
| Cutting Capacity in Rectangle | 10x10 to 45x75mm | 15x15 to 55x90mm | 25x25 to 70x100mm | 60x60 to 60x110mm |
| Trim Cut | 10mm | 10mm | 15mm | 15mm |
| Cutting Length | 10-600 (In a single stroke and 10-3000 (In multi-inducting) | 10-600 (In a single stroke and 10-3000 (In multi-inducting) | 10-600 (In a single stroke and 10-3000 (In multi-inducting) | 10-600 (In a single stroke and 10-3000 (In multi-inducting) |
| Resedue / End Piece | 45-70mm | 45-70mm | 45-70mm | 45-70mm |
| Saw Blade | 285 mm diameter x2mm | 315 mm diameter x2mm | 360 mm diameter x2mm | 460 mm diameter x2mm |
| Number Of Teeth Z | 54,60,72,80,100 | 54,60,72,80,100 | 54,60,72,80,100 | 54,60,72,80,100 |
| Mounting of Hole Size | Dia 63/4 Dia 11mm, 32mm Bore | Dia 63/4 Dia 11mm, 32mm Bore | Dia 90/4 Dia 12.5mm, 40mm Bore | Dia 90/4 Dia 12.5mm, 40mm Bore |
| Cutter Feed Mtr./Min | 40-130 MPM | 40-135 MPM | 50-135 MPM | 40-130 MPM |
| Cutting Feed mm/Sec. | 1-15 mm/Sec | 1-15 mm/Sec | 1-15 mm/Sec | 1-15 mm/Sec |
| Fast Approach mm/Sec. | 140 mm/Sec | 140 mm/Sec | 120 mm/Sec | 120 mm/Sec |
| Set Inch Length | 1-100 mm/Sec | 1-100 mm/Sec | 1-100 mm/Sec | 1-100 mm/Sec |
| Saw Motor Powder | 7.5 Kw | 9.37 Kw | 11.25 Kw | 15 Kw |
| Hydraulic Motor | 1.5 Kw | 1.5 Kw | 1.5 Kw | 2 Kw |
| Chip Conveyor Motor (Opt.) | 0.37 Kw | 0.37 Kw | 0.37 Kw | 0.37 Kw |
| Lubrication Motor | 0.16 KW | 0.16 KW | 0.16 KW | 0.16 KW |
| Machine Dimensions (L-W-H) | 2100mm, 1600m, 1550mm | 2250mm, 1600m, 1700mm | 2450mm, 1760m, 1900mm | 2650mm, 2000m, 2260mm |
| Optional Auto Loader Dimensions (L-W-H) | 5000mmx, 1200 mmx, 1000mm | 5000mmx, 1200 mmx, 1000mm | 5000mmx, 1200 mmx, 1000mm | 5000mmx, 1200 mmx, 1000mm |
Built to handle all types of alloy steel materials, the machine ensures fast cycle times while maintaining consistent cut quality, making it ideal for demanding industrial environments. Its advanced CNC control system guarantees precise length control and minimal material wastage.
An immense level of automation sets this machine apart. Equipped with a fully automatic bar loading system and robotics-based unloading, it enables continuous, unattended operation, significantly improving productivity and reducing manual intervention.

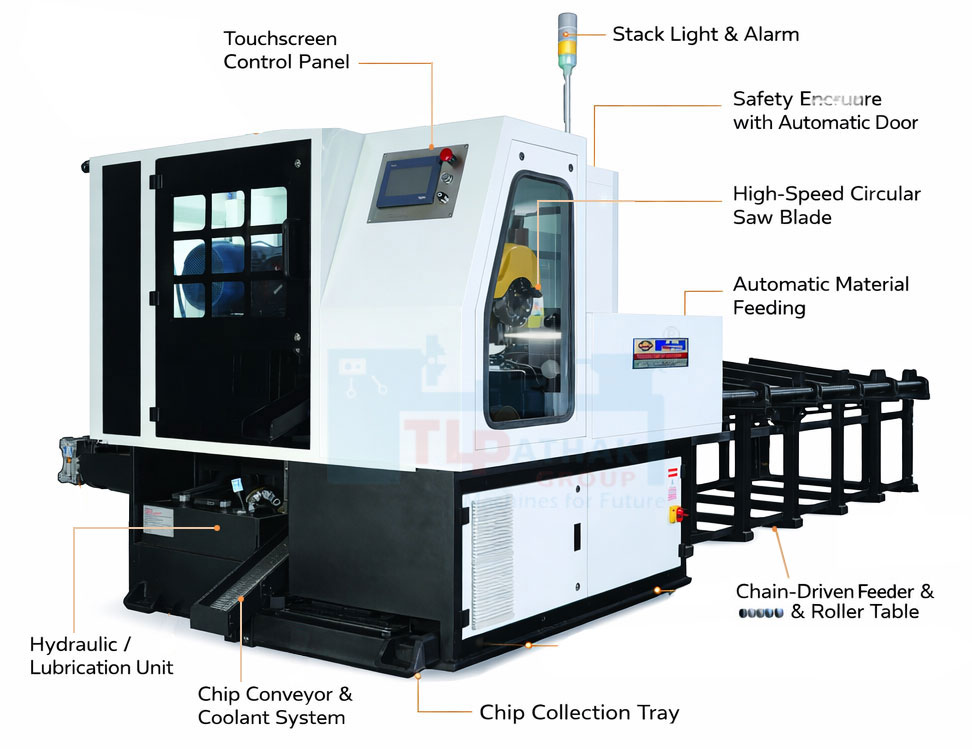

3D angled front view with all parts labeled for Automatic Circular Saw Cutting Machine
| CNC-controlled high-speed metal cutting | Cutting capacity from 20 mm to 80 mm diameter |
| Suitable for all alloy steel materials | Fast cycle times with high cutting accuracy |
| Fully automatic operation with bar loader | Ideal for mass production and precision component manufacturing |
Automotive
Heavy Engineering Units
Auto Component Manufacturing
Alloy Steel Bar Processing
High Volume Industrial Cutting Operations
