Mini 3 in 1 Lathe Cum Drilling Machine
Lathe MachinesThe Mini 3 in 1 Lathe Cum Drilling Machine is a compact, versatile solution that combines turning, drilling, and milling operations into a single precision machine. Designed especially for hobbyists, tool rooms, R&D labs, training institutes, and small workshops, it delivers reliable performance while saving space and cost.
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
Face Plate
Follow Rest Assembly
Steady Rest
Face Milling Cutter
Adepter ISO - MT
Drill Presses Accessories
Four Jaw Independent Chuck
Piston Type Quick Change Tool Post
Gib Type Quick Change Tool Post
Drill Press Mini Vise
Milling Chuck Kit
Hand Reamer Set
HSS Lathe Tool Kit
Carbide Insert Tool Holder
Ti Coated Carbide Insert Tool Holder
| Model | PMLDMM |
| Swing over bed | 125mm |
| Swing over cross slide | 90mm |
| Distance between centers | 180mm |
| Taper of spindle bore | MT1# |
| Spindle bore | 9mm |
| Spindle speed | 560-2500mm |
| Metric threading | 10/0.25-1.0mm |
| Inch threading | 21/22-64 tpl |
| Worktable size | 85x60 mm |
| Travel of cross slide | 80 mm |
| Travel of compound slide | 35 mm |
| Tailstock quill travel | 20 mm |
| Taper of tailstock quill | MT1# |
| Motor power | 120 W |
| Drilling capacity | 10mm |
| End milling capacity | 15mm |
| Face milling capacity | 25mm |
| Spindle speed | 500-2500 rpm |
| Spindle taper | MT1 |
| Spindle stroke | 40mm |
| Spindle nose to table | 120-180mm |
| Head rotary | 360° |
| Net/gross weight | 48.00/55.00 kg |
| Dementions | 520x300x410mm |
The MP125 Multifunctional Combo Lathe Mill Machine delivers versatile metalworking performance through its high-efficiency milling and drilling spindle, designed to meet the demands of precision machining. With a wide spindle speed range of 560 to 2500 RPM, the machine easily adapts to various turning, drilling, and milling applications.
Engineered with a compact and space-efficient design, the MP125 features a 125 mm swing over bed and an 85 × 60 mm worktable, making it ideal for light-duty machining, prototyping, training, and small workshop environments.
Built for ease of operation, the machine is user-friendly and supplied with standard accessories for immediate commissioning, allowing users to start work without delay. For added assurance, the MP125 is backed by a 1-year warranty, ensuring reliability and peace of mind

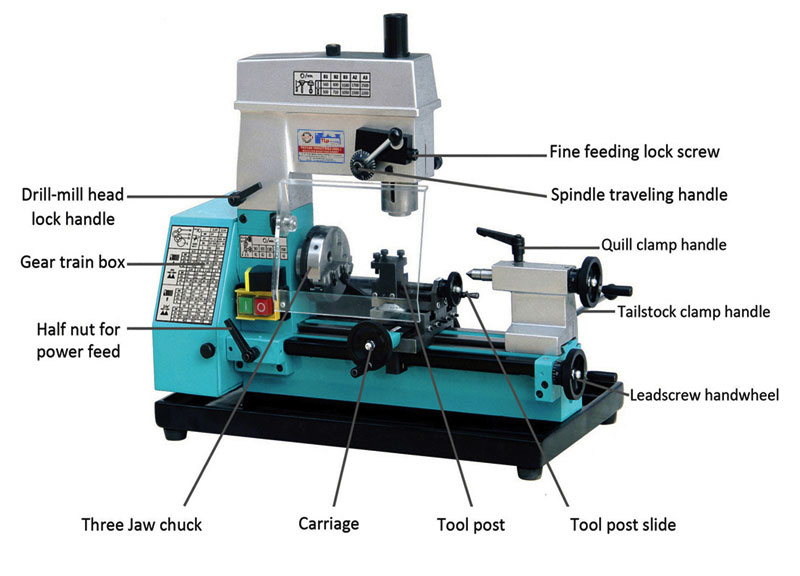

3D angled front view with all parts labeled for Mini 3 in 1 Lathe Cum Drilling Machine
| Integrated 3-in-1 Machining Capability Seamlessly performs lathe, drilling, and milling operations, eliminating the need for multiple machines and reducing floor space requirements. |
| 90° Swiveling Drill-Mill Head Heavy-duty drill-mill head rotates 90° left and right, enabling angular machining, complex drilling, and precision milling tasks. |
| Precision Manual Downfeed System Incorporates a fine manual downfeed mechanism for controlled, accurate milling and drilling operations. |
| Automatic Longitudinal Feed Ensures smooth, uniform cutting with improved surface finish while minimizing operator effort. |
| Built-in Milling Table with T-Slots Rigid milling table with precision T-slots allows secure workpiece clamping for stable and repeatable operations. |
| High-Torque Motor Performance Powered by a 120W high-torque motor, delivering spindle speeds up to 2500 RPM, suitable for machining a wide range of materials. |
| Metric & Inch Thread Cutting Supports both metric and inch threading, offering flexibility for diverse industrial and training applications. |
| Compact, Rigid Construction Robust build quality ensures low vibration, consistent accuracy, and long service life even under continuous use. |
Tool Rooms
Educational Institutes
Workshops
Small & Medium Scale Industries
Fabrication Workshops
