Tapping Machine 6mm
Drill MachinesA tapping machine is a precision tool used for creating internal threads in drilled holes using taps. It automates the threading process, ensuring higher accuracy, consistency, and productivity compared to manual tapping.
Advantages:
- Reduces operator fatigue and manual errors.
- Increases speed and productivity in mass production.
- Provides precise and consistent threading results.
From ₹
38,000
Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Specification | TP6 |
| Tapping Machine Capacity | 6 mm |
| Drilling Capacity | 3 mm |
| Spindle Travel / Table travel (6mm) | 60 mm |
| Distance Soindle to Colum | 80 mm |
| Distance between chuck to base | 190 mm |
| Distance between chuck to work table | Moveable |
| Size of base Plate - LxB | 370 x 250 mm |
| Sixe of Work Table LXB | 150 x 150 mm |
| Diamter of Column | 47 nnm |
| V- Belt (Inside) | - |
| V- Belt for Motor (Outside) | A 36 |
| No. of Spindle Speeds | 3 |
| Forwards Speed Range | 480 / 750 / 1400 |
| Reverse Speed Range | 480 / 750 / 1401 |
| Motor Single phase or three phase | 025 H,P 1440 R.P.M |
| Overall Height | 650 mm |
| Overall Width | 270 mm |
| Overall front to back | 540 mm |
| Weight Approx | 50 Kg. |

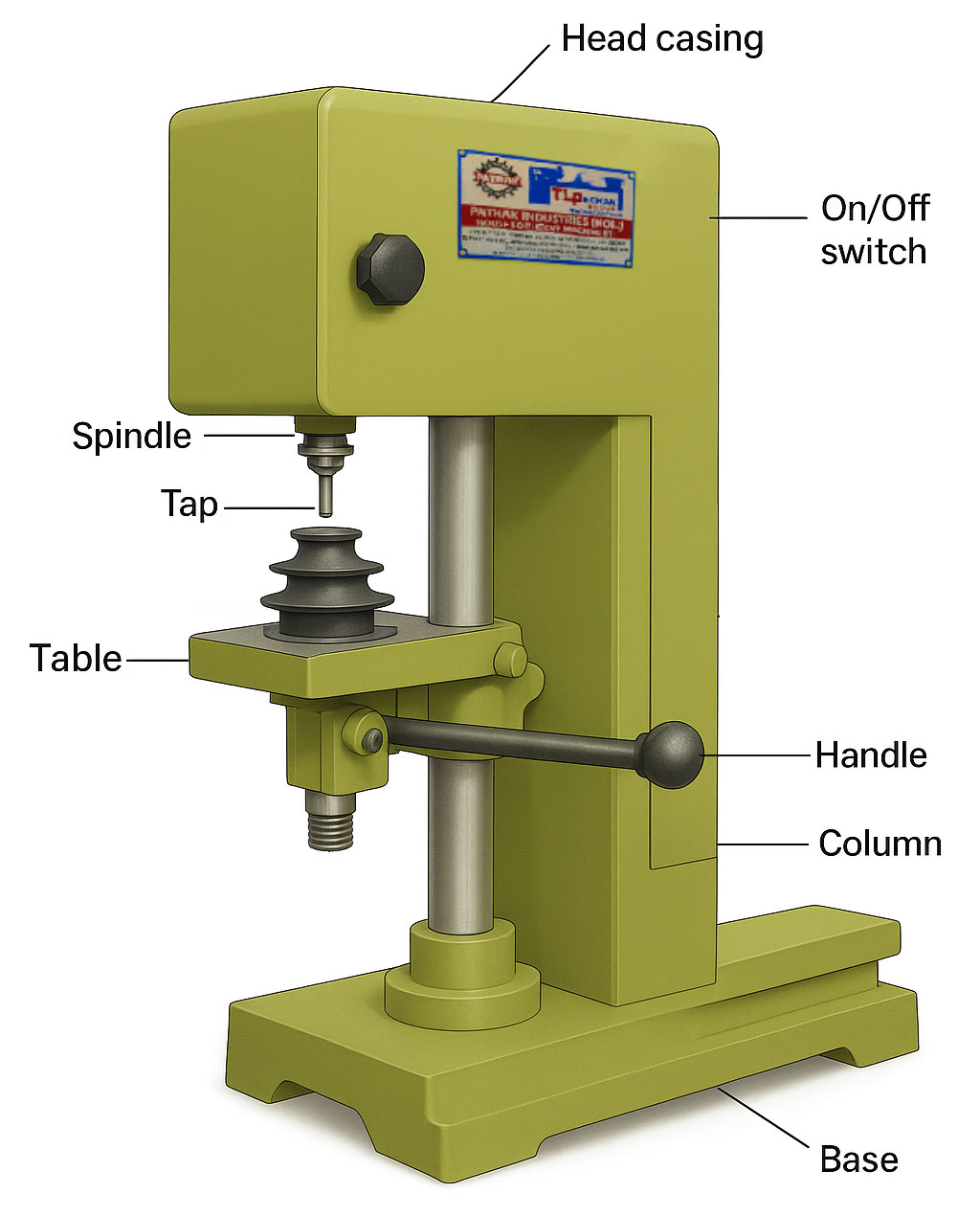

3D angled front view with all parts labeled for Tapping Machine
Key Features:
| Capacity 6 mm (suitable for threading small to medium-sized holes). |
| High Accuracy Ensures uniform thread pitch and alignment. |
| Compact Design Space-saving structure for workshop and production use. |
| Durability Rigid body construction to withstand continuous operations. |
| Ease of Operation Lever or automatic feed for smooth tapping cycles. |
Tool Rooms
Educational Institutes
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Automotive
Industrial vehicles
Aerospace
Manufacturing of nuts
Manufacturing of bolts
Threading in machine parts
Threading Flanges and fittings
