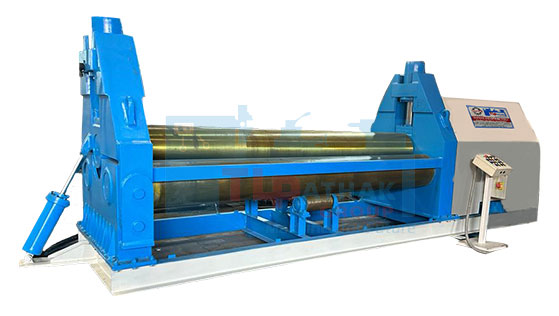

4 Roll Plate Bending Machine (Pre Pinching Type)

Name: 4 Roll Plate Bending Machine (Pre Pinching Type)
Brand: TL Pathak
SKU: MPBD-4R
Price: 1180000 INR
Availability: InStock
Rating: 5 (5 reviews)

Sheet Metal Machines

A 4 Roll Plate Bending Machine (Pre-Pinching Type) is an advanced metal forming machine designed to roll and bend metal plates into cylindrical, conical, or custom curved shapes with high precision and efficiency. Unlike traditional 3-roll systems, the 4-roll configuration provides superior control, faster production cycles, and higher accuracy, making it ideal for heavy-duty and high-volume fabrication industries.

Advantages:

Faster setup and cycle times compared to 3-roll machines
High repeatability for mass production
Ability to handle a wide range of thicknesses and diameters
Reduced dependence on operator skill

From ₹

1,180,000

Download Catalog Request Catalog

Order By Phone

Shipping Information Usually dispatched With In business days

+91-8035735963 OR Call Me Back

Technical Specifications

Model	Working Roll Length	Bending Thickness (MS.)	Pre-Bending Thickness (SS.)	Top Roll Diameter	Bottom Roll Diameter	Slide Roll Diameter	Motor H.P.	Lenght	Height	Width
MPBD-4R-0621	2100 mm	6 mm	4 mm	160 mm	140 mm	120 mm	3	3950 mm	1160 mm	1080 mm
MPBD-4R-0821	2100 mm	8 mm	6 mm	190 mm	170 mm	150 mm	5	3950 mm	1160 mm	1080 mm
MPBD-4R-1021	2100 mm	10 mm	8 mm	210 mm	190 mm	170 mm	10	3950 mm	1160 mm	1080 mm
MPBD-4R-1221	2100 mm	12 mm	10 mm	230 mm	210 mm	190 mm	10	4030 mm	1275 mm	1370 mm
MPBD-4R-1621	2100 mm	16 mm	12 mm	270 mm	250 mm	210 mm	15	4180 mm	1385 mm	1440 mm
MPBD-4R-2021	2100 mm	20 mm	16 mm	300 mm	270 mm	230 mm	20	4440 mm	1630 mm	1620 mm
MPBD-4R-2521	2100 mm	25 mm	20 mm	330 mm	300 mm	250 mm	20	4250 mm	1850 mm	1800 mm
MPBD-4R-3021	2100 mm	30 mm	25 mm	360 mm	330 mm	270 mm	25	4500 mm	2000 mm	1900 mm
MPBD-4R-4021	2100 mm	40 mm	30 mm	390 mm	360 mm	300 mm	30	4900 mm	2200 mm	2000 mm
MPBD-4R-5021	2100 mm	50 mm	40 mm	430 mm	390 mm	330 mm	40	5200 mm	2500 mm	2200 mm
MPBD-4R-0626	2600 mm	6 mm	4 mm	190 mm	170 mm	150 mm	5	4450 mm	1160 mm	1080 mm
MPBD-4R-0826	2600 mm	8 mm	6 mm	210 mm	190 mm	170 mm	10	4450 mm	1160 mm	1080 mm
MPBD-4R-1026	2600 mm	10 mm	8 mm	230 mm	210 mm	190 mm	10	4530 mm	1300 mm	1370 mm
MPBD-4R-1226	2600 mm	12 mm	10 mm	270 mm	250 mm	210 mm	15	4680 mm	1350 mm	1450 mm
MPBD-4R-1626	2600 mm	16 mm	12 mm	300 mm	270 mm	240 mm	15	5000 mm	1650 mm	1650 mm
MPBD-4R-2026	2600 mm	20 mm	16 mm	330 mm	300 mm	250 mm	20	5000 mm	1850 mm	1850 mm
MPBD-4R-2526	2600 mm	25 mm	20 mm	360 mm	330 mm	300 mm	25	4900 mm	1950 mm	1850 mm
MPBD-4R-3026	2600 mm	30 mm	25 mm	390 mm	360 mm	360 mm	30	5400 mm	2150 mm	2000 mm
MPBD-4R-4026	2600 mm	40 mm	30 mm	430 mm	390 mm	390 mm	40	6000 mm	2250 mm	2200 mm
MPBD-4R-0631	3100 mm	6 mm	4 mm	210 mm	190 mm	170 mm	7.5	5000 mm	1200 mm	1100 mm
MPBD-4R-0831	3100 mm	8 mm	6 mm	230 mm	210 mm	190 mm	10	5100 mm	1300 mm	1400 mm
MPBD-4R-1031	3100 mm	10 mm	8 mm	270 mm	250 mm	210 mm	10	5200 mm	1400 mm	1500 mm
MPBD-4R-1231	3100 mm	12 mm	10 mm	300 mm	270 mm	230 mm	15	5500 mm	1700 mm	1700 mm
MPBD-4R-1631	3100 mm	16 mm	12 mm	330 mm	300 mm	240 mm	20	5700 mm	1900 mm	1900 mm
MPBD-4R-2031	3100 mm	20 mm	16 mm	360 mm	330 mm	250 mm	20	5700 mm	1900 mm	1900 mm
MPBD-4R-2531	3100 mm	25 mm	20 mm	390 mm	360 mm	300 mm	25	5900 mm	2000 mm	2100 mm
MPBD-4R-3031	3100 mm	30 mm	25 mm	430 mm	390 mm	330 mm	30	6000 mm	2200 mm	2300 mm
MPBD-4R-4031	3100 mm	40 mm	30 mm	460 mm	420 mm	360 mm	40	6200 mm	2450 mm	2400 mm
MPBD-4R-5031	3100 mm	50 mm	40 mm	510 mm	460 mm	390 mm	60	6400 mm	2800 mm	2500 mm
MPBD-4R-0641	4100 mm	6 mm	4 mm	270 mm	250 mm	210 mm	7.5	6200 mm	1400 mm	1500 mm
MPBD-4R-0841	4100 mm	8 mm	6 mm	300 mm	270 mm	230 mm	10	6200 mm	1700 mm	1700 mm
MPBD-4R-1041	4100 mm	10 mm	8 mm	330 mm	300 mm	240 mm	10	6400 mm	1900 mm	1900 mm
MPBD-4R-1241	4100 mm	12 mm	10 mm	360 mm	330 mm	300 mm	15	6500 mm	1900 mm	1900 mm
MPBD-4R-1641	4100 mm	16 mm	12 mm	390 mm	360 mm	330 mm	20	7000 mm	2000 mm	2000 mm
MPBD-4R-2041	4100 mm	20 mm	16 mm	430 mm	390 mm	360 mm	20	7200 mm	2200 mm	2200 mm
MPBD-3R-2541	4100 mm	25 mm	20 mm	460 mm	420 mm	390 mm	25	7300 mm	2500 mm	2350 mm
MPBD-4R-3041	4100 mm	30 mm	25 mm	510 mm	460 mm	420 mm	30	7500 mm	2800 mm	2500 mm

More Information About Product

The TL Pathak Group proudly presents its advanced 4 Roll Plate Bending Machine, a pinnacle in metal forming technology. With a sturdy frame and cutting-edge features, this machine ensures precise and efficient plate bending for diverse industrial applications. The 4-roll design offers superior control over the bending process, allowing for consistent results across the entire length of the plate. The machine is equipped with user-friendly controls and adjustable settings, providing operators with flexibility for different plate thicknesses and curvature requirements. TL Pathak's commitment to innovation and quality is evident in the durable construction and advanced functionalities of this machine. Whether in fabrication, construction, or manufacturing, the TL Pathak 4 Roll Plate Bending Machine stands as a reliable and efficient solution, meeting the evolving demands of modern metalworking processes with excellence.

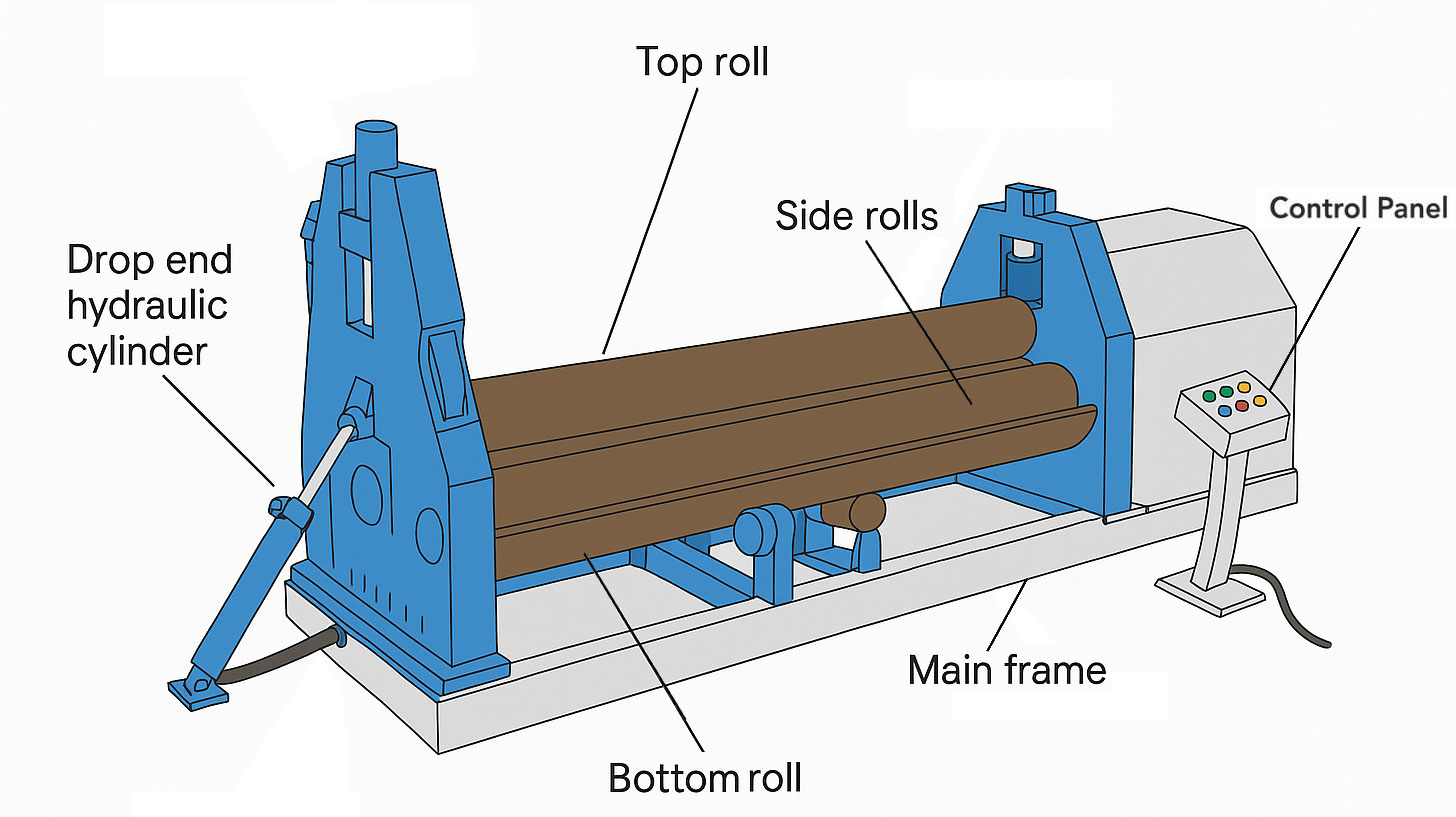

3D angled front view with all parts labeled for 4 Roll Plate Bending Machine

Key Features:

Pre-Pinching Capability
The machine eliminates the need for manual pre-bending by automatically clamping and pre-pinching the plate at both ends, reducing material handling time and scrap.

One-Pass Operation
Most plates can be rolled into cylinders in a single setup, improving efficiency.

User-Friendly Control
Available with manual, hydraulic, or CNC systems for precise programming and repeatability.

High Accuracy
Ensures perfect roundness and minimal flat ends.

Four-Roll Design:

Top Roll
works as the primary forming roll.

Bottom Roll
clamps and feeds the plate.

Two Side Rolls
perform pre-pinching and precise bending operations.

Applications
