8 Inches Spindle Bore Lathe Machine
Lathe MachinesDownload Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Parameter | Specification |
| Spindle Bore | 8 inches (203 mm) |
| Center Height | 400 – 550 mm |
| Swing Over Bed | 800 – 1200 mm |
| Distance Between Centers | 1500 mm – 6000 mm |
| Bed Width | 500 – 750 mm |
| Spindle Speed Range | 10 – 500 RPM (geared) |
| Chuck Size | 400 – 600 mm (3 or 4 jaw) |
| Tailstock Quill Diameter | 100 – 150 mm |
| Thread Pitch Range | Metric & Imperial |
| Machine Weight | 4 to 12 Tons (depending on size) |
We also produce 8 inches spindle bore lathe machines. It has no change but size. The size of this machine is 8 inches whereas the applications and products used for this machine are all same. Our experts manufacture this machine with full dedication as they want to satisfy all our customers. It is much more affordable than other machines also. However, we also customize this machine for our customers as per their needs.
Key Features
| 8” (203 mm) Large Spindle Bore for bar or pipe feeding |
| All Geared Headstock with variable speed ranges |
| Heavy-Duty Bed Construction ensures stability under load |
| High Torque Spindle Drive for tough materials |
| Taper Turning Attachment (optional) |
| Hydraulic Chuck or Manual 3/4 Jaw Chuck options |
| Tailstock with Adjustable Quill for long shaft support |
| Rapid Traverse & Thread Cutting Capability |

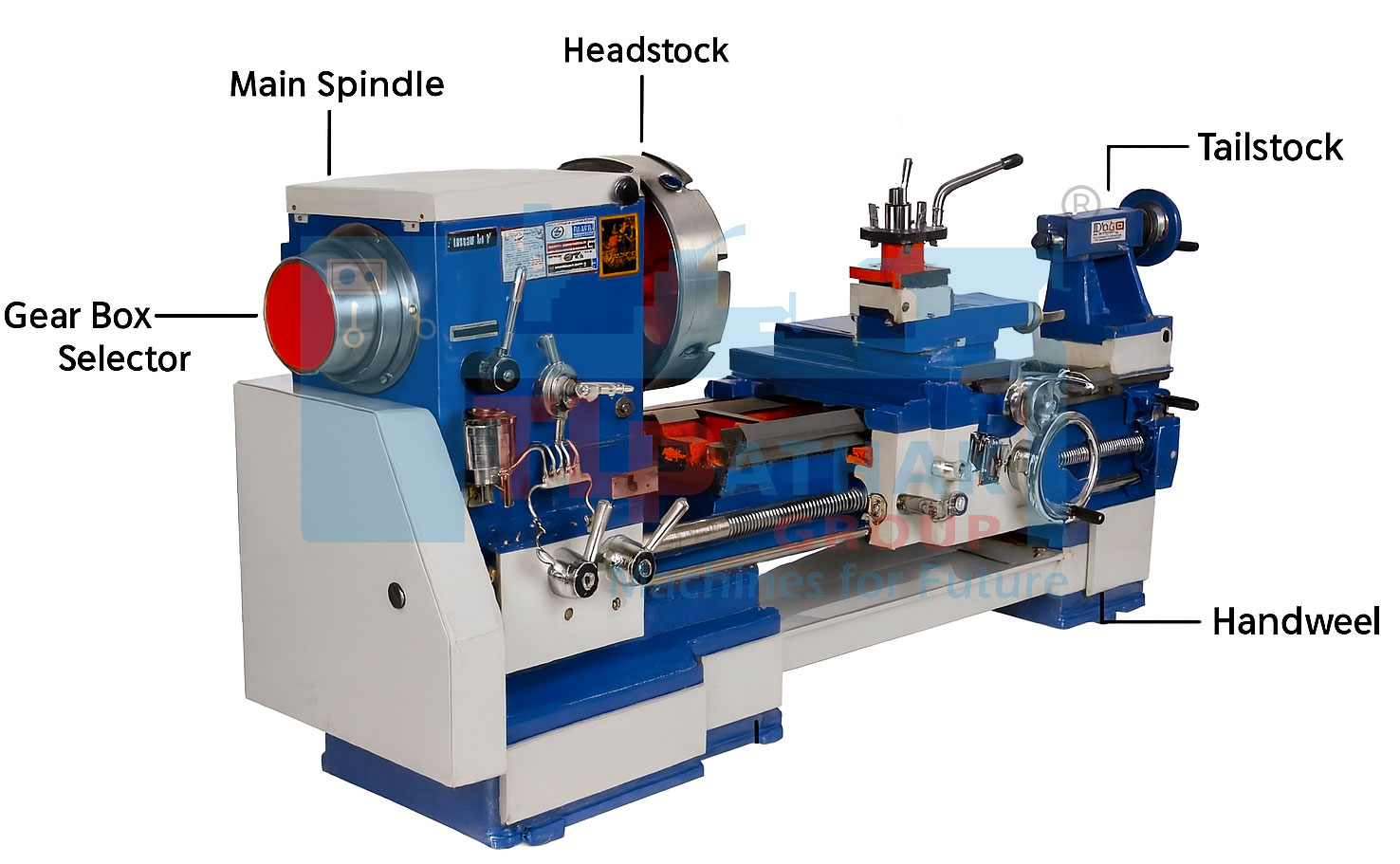

3D angled front view with all parts labeled for 8 Inches Spindle Bore Lathe Machine
| Oil and Gas Industry: Machining long drill pipes, tubing, and casing. Threading and boring large-diameter oilfield components. |
| Heavy Engineering: Turning and boring large-diameter shafts and cylinders. Fabricating and repairing large machine parts. |
| Hydraulic Cylinder Manufacturing: Machining long and thick hydraulic cylinders and piston rods. |
| Steel Pipe and Tube Industry: Precision machining and threading of heavy steel pipes and tubes. |
| Mining Equipment Manufacturing: Machining parts of mining tools like augers and boring rods. |
| Shipbuilding and Marine Engineering: Repairing and manufacturing propeller shafts and rudder parts. |
| Defense and Aerospace: Machining large-diameter, high-strength alloy parts. |
| Wind Turbine Component Manufacturing: Turning large flanges, hubs, and generator shafts. |
| Repair Workshops: Overhauling heavy industrial components with large bore requirements. |
| Custom Fabrication Jobs: Handling irregular and large-diameter parts with deep internal features. |
Country Oil
Ship Building
Power Plants
Steel & Paper Mills
Rolling Mill
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Aerospace
Metal Fabrication Shops
Automotive Industry
Aerospace Industry
Maintenance workshops
Hydraulic Cylinder Manufacturing
Heavy Engineering
Defense workshops
