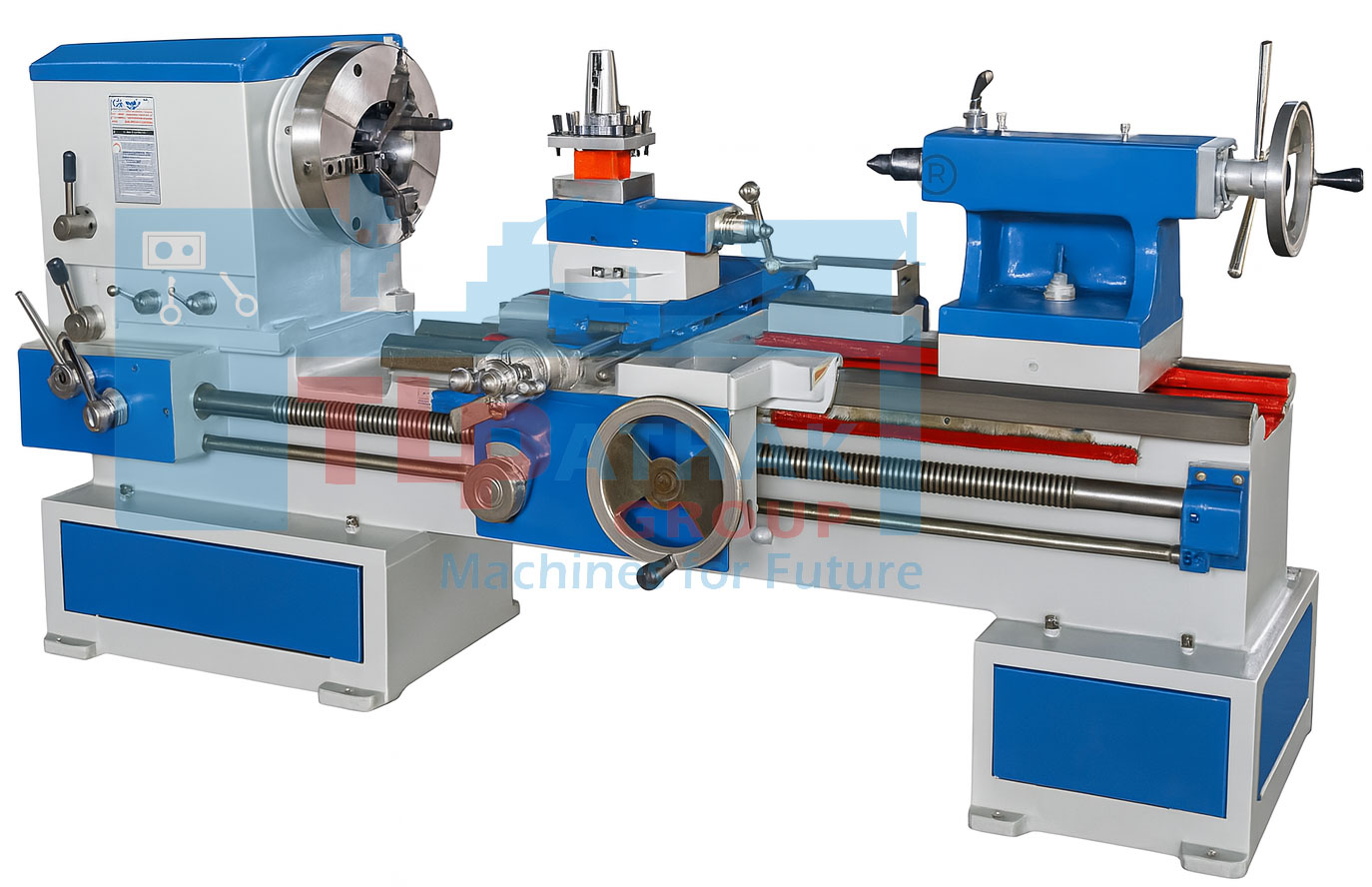

Big Bore Lathe Machine With Clamp System
Lathe MachinesA Big Bore Lathe Machine with Clamp System is a heavy-duty precision lathe specifically designed for machining large-diameter components such as thick pipes, flanges, and hollow shafts. The clamp system enhances the machine’s workholding capacity, ensuring stability during large workpiece operations.
From ₹
295,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Swing Over Bed | 700 mm to 1500 mm |
| Distance Between Centers | 1000 mm to 8000 mm |
| Spindle Bore Diameter | 150 mm to 600 mm |
| Spindle Speed Range | 20 – 1200 RPM (variable, geared) |
| Chuck Size | 400 mm to 1200 mm (4-jaw independent) |
| Bed Width | 400 mm to 1000 mm |
| Tool Post | Four-way type |
| Cross Slide Travel | 300 mm to 600 mm |
| Compound Slide Travel | 150 mm to 350 mm |
| Tailstock Quill Diameter | 75 mm to 150 mm |
| Tailstock Quill Travel | 150 mm to 300 mm |
| Main Motor Power | 10 HP to 50 HP |
| Clamp System | Manual or Hydraulic (based on configuration) |
| Thread Cutting | Metric & Imperial (via Norton gearbox) |
| Machine Weight | 3000 kg to 12000 kg (depending on model) |
We provide the fastest, safest, and most reliable big bore lathe machine with a clamp system to our customers that are suitable for static applications. It is a 10 inches bore lathe machine that has a clamp system also. It is very much affordable and we use the most advanced method to produce this machine as the customer demands the latest technology.
| Big Bore Spindle Extra-large spindle bore (100–600 mm) for handling oversized hollow workpieces |
| Heavy-Duty Bed Rigid, wide bed construction for vibration-free, stable machining |
| Clamp System Hydraulic or mechanical clamps for secure positioning of large-diameter parts |
| Powerful Headstock High torque output with multiple speed ranges for heavy cutting |
| 4-Jaw Independent Chuck Standard for holding irregular and large workpieces |
| Tailstock Sturdy, movable tailstock with large quill for added support |
| Carriage and Cross Slide Robust carriage for smooth tool movement and feed |
| Gearbox Feed System Suitable for threading and auto-feed operations |

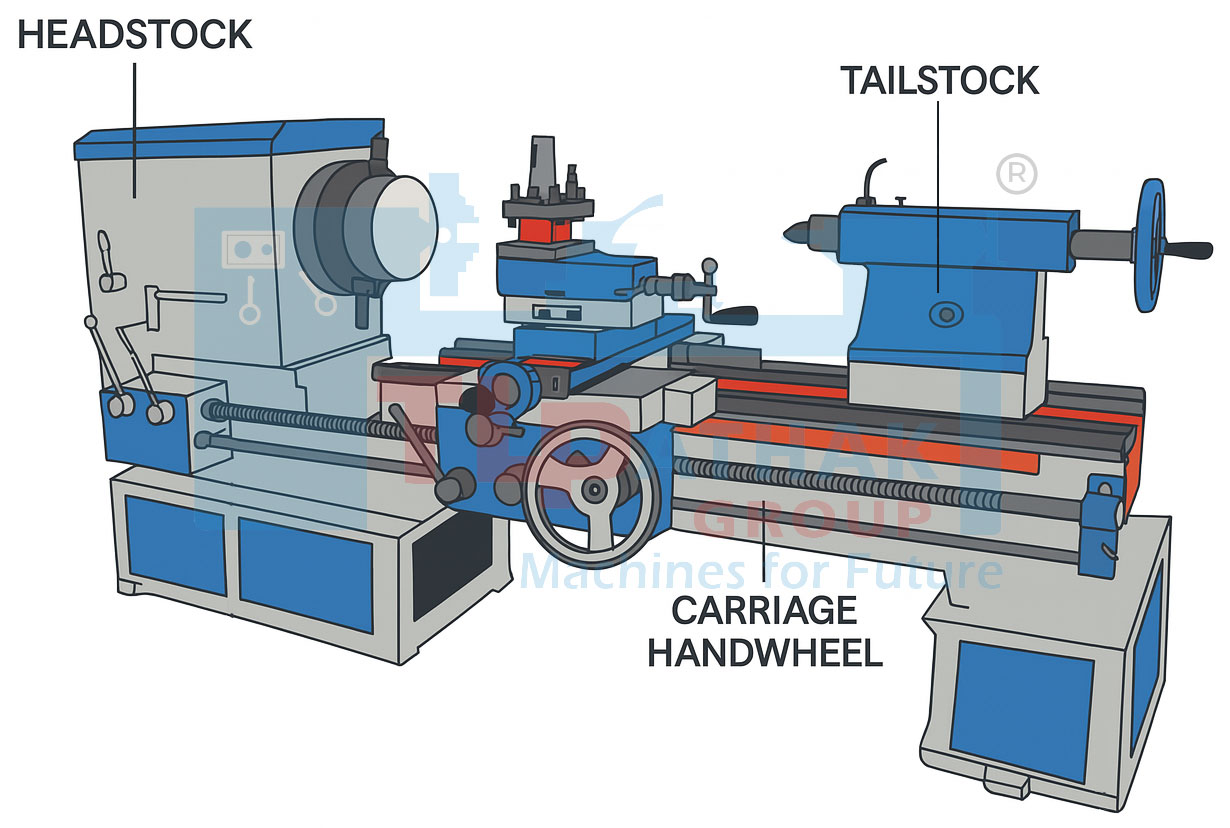

3D angled front view with all parts labeled for Big Bore Lathe Machine With Clamp System
Advantages
| Durable and robust for continuous operation |
| High machining accuracy for repetitive tasks |
| Cost-effective for low to medium production volumes |
| Flexible with various tooling setups |
| Easy to operate and maintain |
Country Oil
Ship Building
Power Plants
Steel & Paper Mills
Tool Rooms
Workshops
Small & Medium Scale Industries
Fabrication Workshops
Railway vehicles
Hydraulic Cylinder Manufacturing
Heavy Engineering
