Cnc NC Heavy Duty Pipe Tube Bending Machine
Section Bending MachineA Manual Hydraulic Pipe Bender is a versatile tool used to bend pipes and tubes into different angles and shapes with the help of hydraulic pressure. Unlike simple manual pipe benders that rely entirely on physical force, this machine uses a hydraulic jack mechanism to generate higher bending force with minimal human effort. It is widely used in industries such as construction, plumbing, automotive, and mechanical workshops.
Advantages:
- Requires less manual effort compared to traditional pipe benders.
- Provides accurate, smooth, and wrinkle-free bends.
- Portable and easy to operate, making it ideal for on-site jobs.
- Cost-effective solution for medium-duty pipe bending tasks.
From ₹
1,545,000
To
2,500,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| MODEL NO | PL32 (3 Axis) | PPL45 (3 Axis) | PPL65 ( 3 Axis) | PPL100 (3 Axis) | ||||
| Max. Tube Capacity ( D x T) | 32mm x 2mm (ferrous tubes UTS 45 kg/mm2) |
45mm x 3mm (Ferrous tubes UTS 45 kg /mm2) |
65mm x 5mm (Ferrous tubes UTS 45 kg/mm2) |
114mm x 7mm (Ferrous tubes UTS 45 kg/mm2) |
||||
| Min. Tube Capacity (D) | 6mm | 12mm | 20mm | 20mm | ||||
| Max. Bend Radius (CLR) | 120mm | 150mm | 350mm | 350mm | ||||
| Min. Bend Radius (CLR) | 20mm | 25mm | 30mm | 30mm | ||||
| Min. Bend Radius (in terms of D) | 1.5D | 1.5D | 1.5D | 1.5D | ||||
| Length over mandrel | 2 Meters | 2 Meters | 2 Meters | 4 Meters | ||||
| Carriage travel | 1.5 Meters | 1.5 Meters | 1.5 Meters | 2.5 Meters | ||||
| Bend Angle Range | 5 to 180 degrees | 5 to 180 degrees | 5 to 180 degrees | 5 to 180 degrees | ||||
| Bending Direction | Clockwise | Clockwise | Clockwise | Clockwise | ||||
| Max .Bend Speed (Accaracy) | 30 degrees (+-0.2) | 30 degrees (+-0.2) | 30 degrees (+-0.2) | 30 degrees (+- 0.2) | ||||
| Push & Turn - Electric AC Servo Bend - Hydraulically | Push & Turn - Electric AC Servo Bend - Hydraulically | Push & Turn - Electric AC Servo Bend - Hydraulically | Push & Turn - Electric AC Servo Bend - Hydraulically | |||||
| Axis (Programmable) | Max. Speed | Max. Speed | Max. Speed | Accuracy | Accuracy | Max. Speed | Accuracy | Accuracy |
| 400 mm / sec | +- 0.1 mm | |||||||
| Push (DBB) - Y Axis | 600 mm /sec | +- 0.1 mm |
600 mm / sec | +- 0.1 mm | 600 mm / sec | +- 0.1 mm | 120 deg / sec | +- 0.1 deg |
| Turn (POB) - B Axis | 200 deg / sec | +- 0.1 deg | 200 deg / sec | +- 0.1 deg | 200 deg / sec | +- 0.1 deg | 30 deg / mm | +- 0.2 deg |
| Bend (DOB) - C Axis | 90 deg / mm | +- 0.2 deg | 90 deg / mm | +- 0.2 deg | 90 deg / mm | +- 0.2 deg | ||
| Plc & Servo System | PLC, MMI & Servo Sysems of Mitsubishi make | PLC, MMI & Servo Systems of Mitsubishi make | PLC, MMI & Servo Systems of Mitsubishi make | PLC, MMI & Servo Systems of mitsubishi make | ||||
| Memory Capacity | 12 bends per program, 50 programs | 12 bends per program, 50 programs | 12 bends per program, 50 programs | 12 bends per program, 50 programs | ||||
| Connected Load | 5 KW for Hydraulics & 2 KW for Servo Motor | 5 KW for Hydraulics & 2 KW for Servo Motor | 5 KW for Hydraulics & 2 KW for Servo Motor | 5 KW for Hydraulics & 2 KW for Servo Motor | ||||
| 3 Phase AC, 415 V, 50 H2 | 3 Phase AC, 415 V, 50 H2 | 3 Phase AC, 415 V, 50 H2 | 3 Phase AC, 415 V, 50 H2 | |||||
| Oil Tank Capacity | 150 litres (built in) | 150 Litres (built in) | 200 Litres (built in) | 300 litres (built in) | ||||
| Machine Lubrication | Manual Centralized Lubrication System | Manual Centralized Lubrication System | Manual Centralized Lubrication System | Manual Centralized Lubrication System | ||||
This machine aims to give you trouble-free and hassle free service. It works with minimal pressure. It contains a PLC system having a touchscreen HMI. It works on a toggle mechanism that helps in the reduction of pressure. The bends that this machine creates are just flawless and clear in nature. And the best part is it has a memory capacity of almost 50 programs.

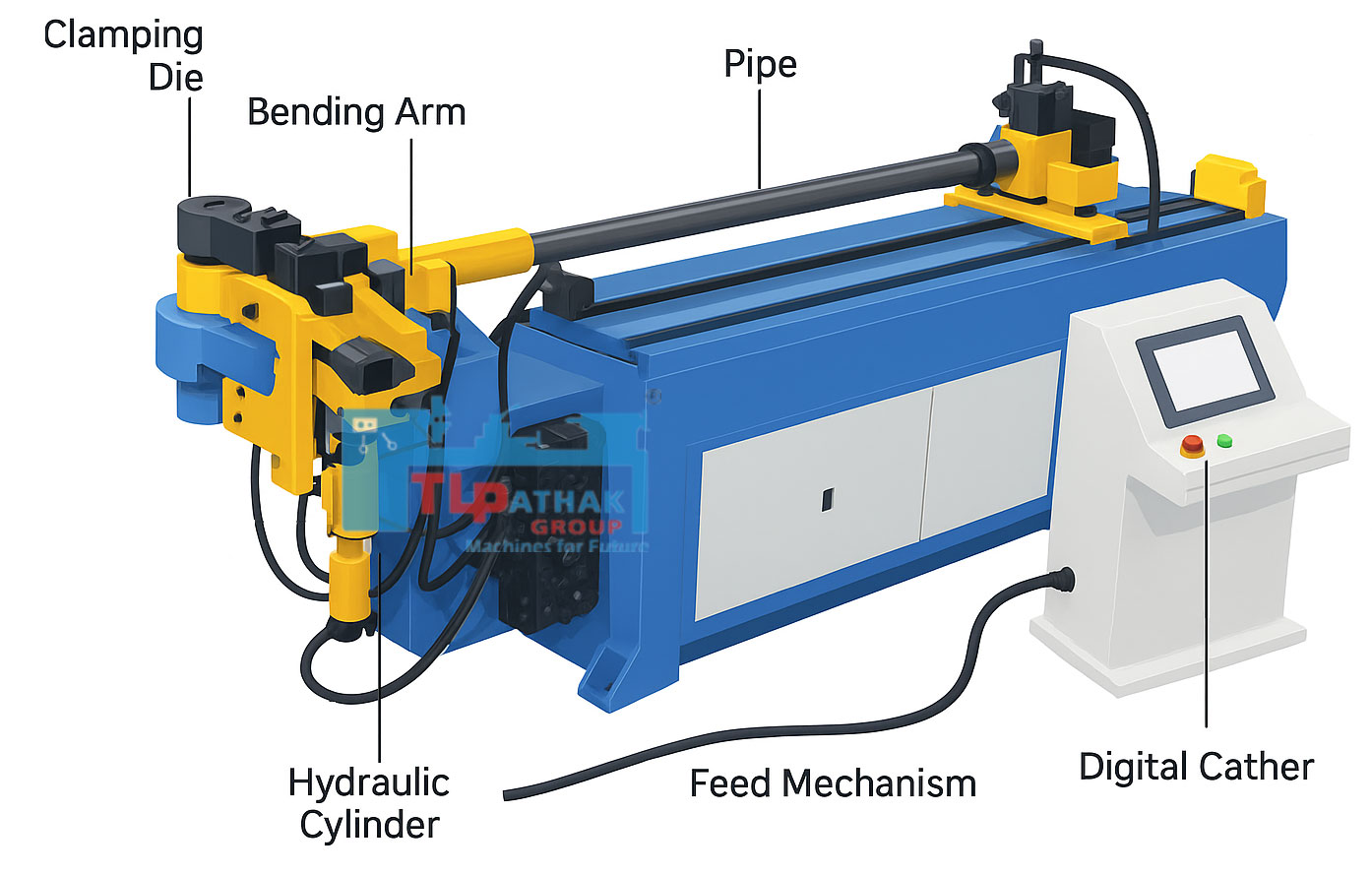

3D angled front view with all parts labeled for Cnc NC Heavy Duty Pipe Tube Bending Machine
Key Features:
| Hydraulic Operation Uses a hydraulic jack to apply strong, consistent pressure for smooth bends. | Manual Control Operated manually with a lever, providing flexibility and ease of use. |
| Sturdy Frame Built with a heavy duty steel frame for durability and stability. | Multiple Dies Comes with different size bending shoes (dies) to accommodate various pipe diameters. |
| Portable Design Often mounted on a tripod stand, making it easy to transport and use on-site. |
