Manual Hydraulic Pipe Bender
Section Bending MachineA Manual Hydraulic Pipe Bender is a versatile tool used to bend pipes and tubes into different angles and shapes with the help of hydraulic pressure. Unlike simple manual pipe benders that rely entirely on physical force, this machine uses a hydraulic jack mechanism to generate higher bending force with minimal human effort. It is widely used in industries such as construction, plumbing, automotive, and mechanical workshops.
Advantages:
- Requires less manual effort compared to traditional pipe benders.
- Provides accurate, smooth, and wrinkle-free bends.
- Portable and easy to operate, making it ideal for on-site jobs.
- Cost-effective solution for medium-duty pipe bending tasks.
From ₹
28,000
To
78,000
Download Catalog Request Catalog
Order By Phone
Shipping Information Usually dispatched With In business days
+91-8035735963 OR Call Me Back
| Model | Max Pressure | Max Stroke | Bending dies | Pipe wall thickness | G.W | Volume | Packing way |
| HHW-1A | 6T | 150mm | 3/8'',1/2'',3/4'',1'' | 1.5-3.5mm | 17kg | 43x38x13 cm | Metal case |
| HHW-2 | 13T | 250mm | 1/2'',3/4'',1'',11/4'',11/2'',2'' | 2.75-4.5mm | 49kg | 73x32x20 cm | Plywood |
| HHW-3 | 20T | 290mm | 1/2'',3/4'',1'',11/4'',11/2'',2'',21/2'',3'' | 2.75-5mm | 98kg | 93x40x21 cm | Plywood |
| HHW-4 | 23T | 370mm | 1/2'',3/4'',1'',11/4'',11/2'',2'',21/2'',3'',4'' | 2.75-6mm | 118x46x23 cm | Plywood |
This hydraulic pipe Bender provides easier and more accurate bending. The best part is it can bend a few specific pipes at just one go. It is more convenient to use and works faster. It’s inside environment is quite friendly and one can usually get acquainted to it. The design is quite portable for all the construction works and it can be bent into the range of 4 degree.

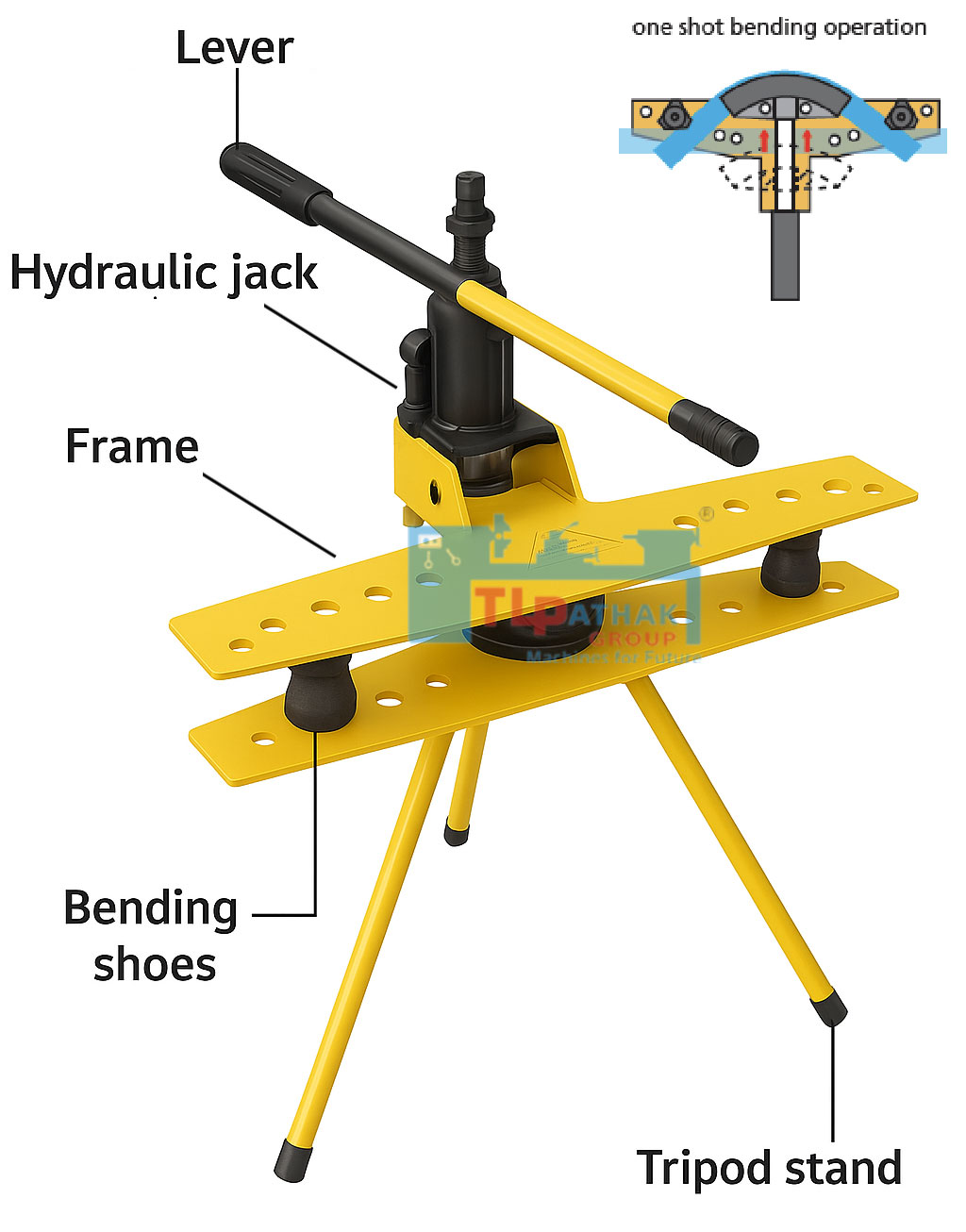

3D angled front view with all parts labeled for Manual Hydraulic Pipe Bender
Key Features:
| Hydraulic Operation Uses a hydraulic jack to apply strong, consistent pressure for smooth bends. | Manual Control Operated manually with a lever, providing flexibility and ease of use. |
| Sturdy Frame Built with a heavy-duty steel frame for durability and stability. | Multiple Dies Comes with different size bending shoes (dies) to accommodate various pipe diameters. |
| Portable Design Often mounted on a tripod stand, making it easy to transport and use on-site. |
